Lancing

Automatic Induction Foil Sealing Machine (LUFS3300TP class)


Air‑cooled induction sealer for tamper‑evident aluminum foil seals. Stainless construction with simple setup for food, beverage, cosmetic and pharma lines.


View Specs Configure & Quote

  • Cap diameter range: Φ15–60 mm (typical)
  • Bottle height range: ≈ 50–350 mm (model‑dependent)
  • Air‑cooled; stainless‑steel frame
  • Approx. 4.2 kW at 220 V, 50 Hz (LUFS3300TP)
Automatic L‑sealer shrink wrapper

Key Features

Reliable sealing

Consistent, tamper‑evident results across cap types.

Easy operation

Intuitive controls and quick head positioning.

Air cooling

No external water circuit required.

Line integration

Mount inline after capping for rapid throughput.

Compact size

≈ 750 × 600 × 1500 mm; ~44 kg (machine)

Quality build

Durable stainless‑steel body

Technical Specifications

Model comparison (ref.)

Power supply
220 V 50 Hz; 4.2 kW (FS3300TP) / 2.2 kW (FS2200TP)
Cooling
Air
Cap diameter
Φ15–60 mm
Bottle height
FS3300TP ≈ 50–350 mm; FS2200TP ≈ 10–360 mm
Machine size
FS3300TP ≈ 750 × 600 × 1500 mm
Net/Gross weight
FS3300TP ≈ 44/52 kg

Operation

Material
Stainless steel
Use cases
Food, beverage, cosmetic, pharmaceutical
Notes
Final spec depends on chosen model and cap/foil type

Specs are indicative; configuration may vary by model and options.

Typical Applications

Food & beverage

Foil induction sealing for jars and bottles.

Cosmetic & personal care

Leak‑proof seals to protect product integrity.

Pharmaceutical

Tamper‑evident closure security.

What’s Included

Configure Your Machine


Tell us about your products and line requirements. We’ll confirm compatibility and quote the best configuration.

  • Product: bottle/can type & dimensions
  • Bundle pattern (e.g., 2×3, 3×3) & with/without tray
  • Target output (packs/min) and film type
  • Utilities available (power, air) & conveyor height
It takes less than a minute Your name, company and one contact method are all we need to begin.
How should we contact you? *

Add a phone number or email address.

No technical specification is needed—we will guide you.

Prefer to speak now? Call 01494 623015 Speak directly with the Lancing team.
Lancing
Get Appointment
Contact our Office
Latest News New

About Lancing

Lancing have been specialising in the manufacture of both semi automatic and fully automatic machinery for many years. Our location in the South East..

Read More
-

Company

Selected machinery





Talk to our engineers

© Copyright 2026 by Lancing Ltd - all rights reserved terms & conditions

Lancing
Get Appointment
Contact our Office
Latest News New

About Lancing

Lancing have been specialising in the manufacture of both semi automatic and fully automatic machinery for many years. Our location in the South East..

Read More

Company

Selected machinery

blog-img1_img

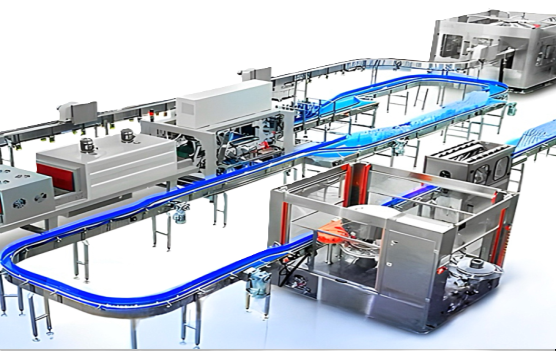

Fully Automatic Water Bottling Line
blog-img2_img

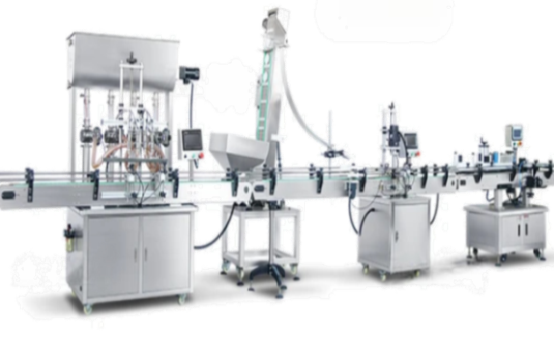

Pro Series Fully Automatic Line
